CG-1 manufacturing line is designed for the production of composite reinforcement made of glass, basalt and carbon fiber roving with sand coating or a periodic profile.
The cross-section diameter is 20–42 mm.
CG-1 Manufacturing line for the production of fiber-reinforced polymer rebar
The CG-4 manufacturing line is designed for the production of composite reinforcement made of glass, basalt and carbon fiber roving with sand coating or a periodic profile. The main feature of the CG-4 line is the simultaneous production up to 4 streams of rebar.
The cross-section diameter is 4–20 mm.

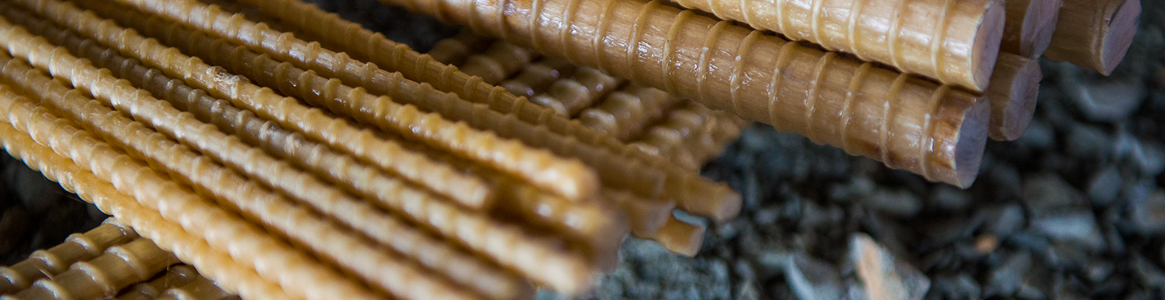

CG-4 Manufacturing line for the production of fiber-reinforced polymer rebarComposite Group GFRP Rebar Technical Specifications
Tensile strength
1100-1400 MPa
Modulus of elasticity
50 000 MPa
Ultimate strength of concrete bond
12-25 MPa
Ultimate strength at compression
300-700 MPa
Transverse shear strength
150-220 MPa
Coefficient of thermal expansion
0,00001°C
Glass fiber content
82-86%
Weight of CG GFRP rebar
| Weight, g/m | |||
|---|---|---|---|
| Diameter of rebar, mm | Russian GOST 31938-2022 | ASTM | Russian GOST 31938-2012 |
| 4 | 40 | 32 | 24 |
| 6 | 58 | 51 | 46 |
| 8 | 103 | 98 | 80 |
| 10 | 161 | 150 | 122 |
| 12 | 232 | 210 | 181 |
| 14 | 315 | 275 | 260 |
| 16 | 412 | 388 | 350 |
| 18 | 521 | 485 | 443 |
| 20 | 644 | 570 | 547 |
For more details, please refer to our sales office
