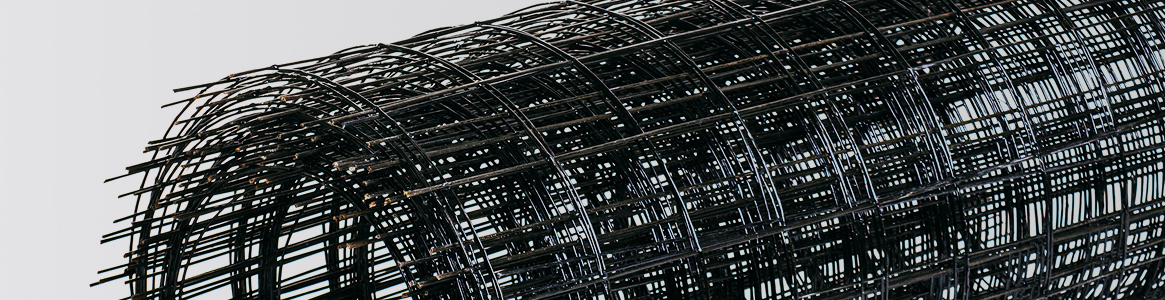

Composite fiberglass mesh reinforcement

Composite fiberglass mesh reinforcement
Manufacturing line for the fiber-reinforced polymer rebar grid

Composite Group GFRP Mesh Technical Specifications

  • Rod diameter

    2,5 - 8 mm

  • Width of mesh roll

    any width up to 2m

  • Length

    2,5-4,00 rolls of 25/50m or cards up to 12 m long
    Above 4,00 mm: cards up to 12m long

  • Tensile strength in transverse and longitudinal directions

    1350 MPa

  • Modulus of elasticity of transverse and longitudinal rods

    48 GPa

  • Transverse shear strength of transverse and longitudinal rods

    0,58 kN

  • Residual tensile strength after immersion into alkali invoroment

    82%

  • Coefficient of thermal expansion

    0,00001 °C

  • Glass fiber content

    82-86%

Weight of GFRP mesh

Diameter (mm) Cell size (mm) Dimensions (mxm) Weight (g)
2.5 50x50 1x1 292
2.5 50x100 1x1 217
2.5 100x100 1x1 150
3 100x100 1x1 280
3 150x150 1x1 175
4 100x100 1x1 400
4 150x150 1x1 250
6 200x200 1x1 651

For more details, please refer to our sales office
